Instruments » Sample Preparation » R-VS 3000

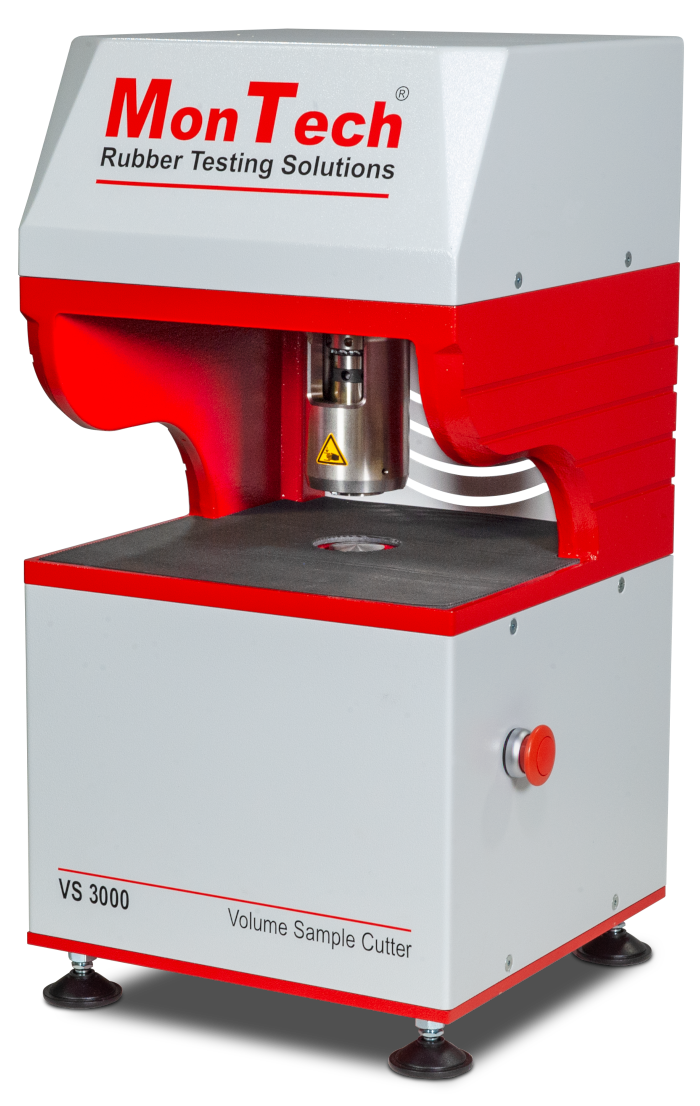

R-VS 3000 Moving Die Rheometer Volumetric Sample Cutter

The R-VS 3000 rheometer sample cutter prepares repeatable volumetric samples for moving die rheometer and rubber process analyzer test methods.

   Download Brochure    Request Quote

R-VS 3000 Moving Die Rheometer Volumetric Sample Cutter
The R-VS 3000 MDR and RPA sample cutter is the most rugged rubber rheometer sample cutter is the most rugged to date. One of the most important factors for test results is consistency in sample preparation. Users place unvulcanized samples within the cutting space and while using the two hand control system, the cutter effortlessly prepares a volumetric sample for continued usage.

Features

  • 270° cutting area for easy accessibility

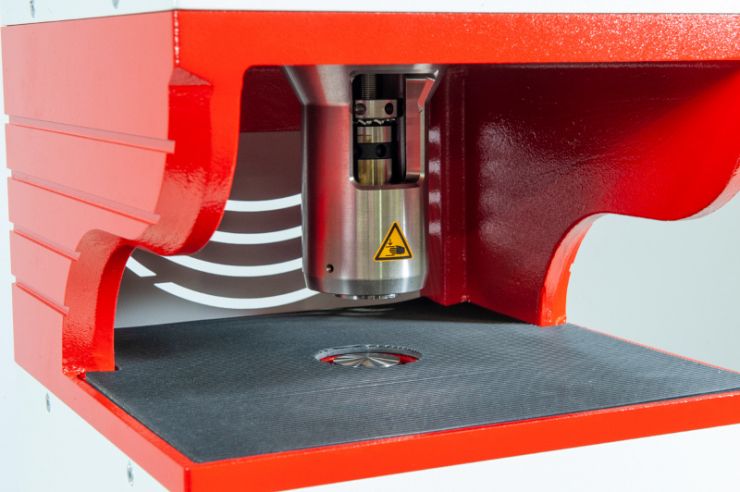

  • Compression piston and sliding knife assembly
  • No consumable materials
  • Two push-button safety operation
  • Quick pneumatic operation
  • Variable setting of sample volume

Technical Specifications

Cutting Diameter

35 mm (others optional)
Max. Thickness

0.7 in (18 mm)
Reproducibility

0.1%
Sample Volume

2 cm3 to 12 cm3 (adjustable)
Compression Time

1 sec to 15 sec (adjustable)
Dimensions (W x D x H)

24 in x 17 in x 15 in (600 mm x 430 mm x 380 mm)
Weight

approx. 90 kg net
Electrical

90-250 V, 1 Amp, 47-63 Hz
Pneumatics

min. 0.5 Bar
