AO 3000

Rubber Aging Oven

Accelerate aging on finished rubber products using the newest rubber aging oven technology in the industry.

By using MonTech’s AO 3000 Rubber Again Oven, a laboratory is using the newest digital and software programmable rubber aging oven for precision aging of rubber parts, products and components. Made of high quality, hygienic, easy-to-clean stainless steel, the AO 3000 offers the safest and most controllable technology for rubber aging. This instrument is universally applicable for research facilities fulfilling the rubber aging test method.

Request Quote   Download Brochure

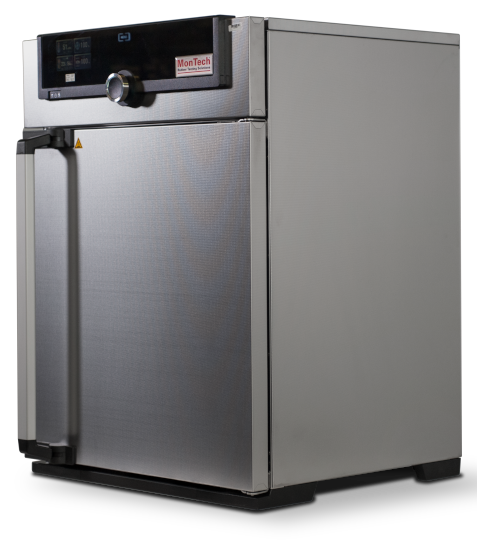

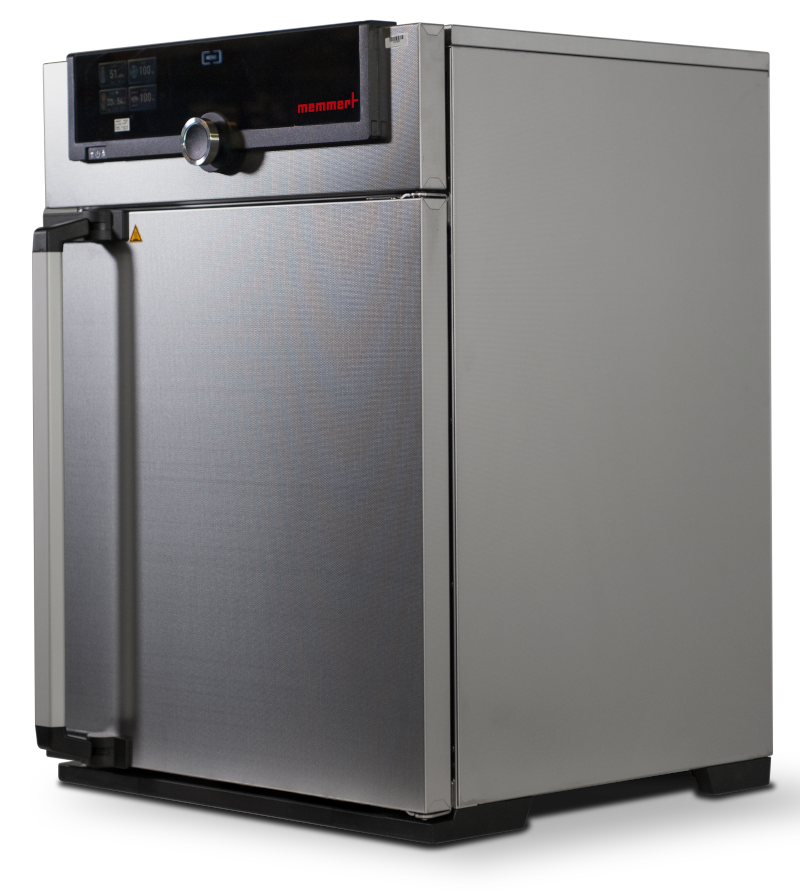

AO 3000

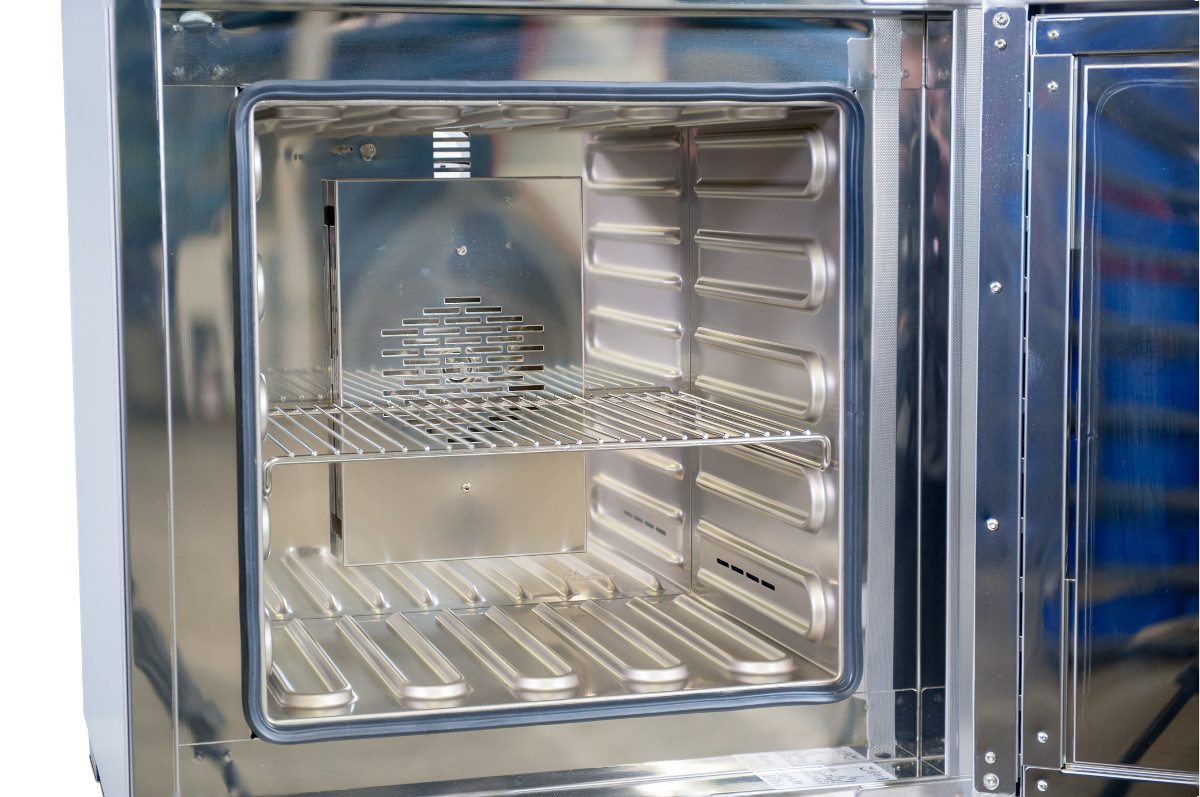

Aging oven interior

AO 3000 Features

  • Forced air circulation by quiet air turbine
  • Fully insulated stainless steel door with 2-point lock
  • Pre-heated fresh air admixture by air flap control (adjustable in 10 % steps)
  • Vent connection including restrictor flap
  • Digital PID-microprocessor controller with high-definition TFT-color display
  • Self-diagnostics for fault analysis
  • 1 Pt 100 sensor DIN class A in 4-wire-circuit
  • Programmable timer (adjustable from 1 minute to 99 days)
  • Adjustable control displays for temperature, speed, air flap position, time zones, environment
  • Control software for managing and organizing the data via ethernet interface
  • Variable language settings
  • Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)

Technical Specifications

Model / Volume [Liter]

30

55

75

110

160

260

450

1060
Interior Dimensions [mm]

400 x 320 x 250

400 x 400 x 330

400 x 560 x 330

560 x 480 x 400

560 x 720 x 400

640 x 800 x 500

1040 x 720 x 600

1040 x 1200 x 850
Exterior Dimensions [mm]

585 x 704 x 434

585 x 784 x 514

585 x 944 x 514

745 x 864 x 584

745 x 1104 x 584

814 x 1183 x 684

1224 x 1247 x 784

1224 x 1726 x 1035
Working range

+5°C above ambient to +300°C
Resolution

to 99.9°C:0,1°C from 100°C: 0,5°C
Accuracy

+/- 1.5°C (standard), optional higher accuracies are possible
Shelves included /
Max. number of shelves

1 / 3
20kg max.

1 / 4
20kg max.

2 / 6
20kg max.

2 / 5
20kg max.

2 / 8
20kg max.

2 / 9
20kg max.

2 / 8
30kg max.

1 / 14
60kg max.
Net weight /
Gross weight [kg]

45 / 61

57 / 76

66 / 85

74 / 99

96 / 122

110 / 161

161 / 227

252 / 416
Power rating
at 230V, 50/60 Hz [W]
(other voltages on request)

1600

2000

2500

2800

3200

3400

5800
(triple phase)

7000
(triple phase)
