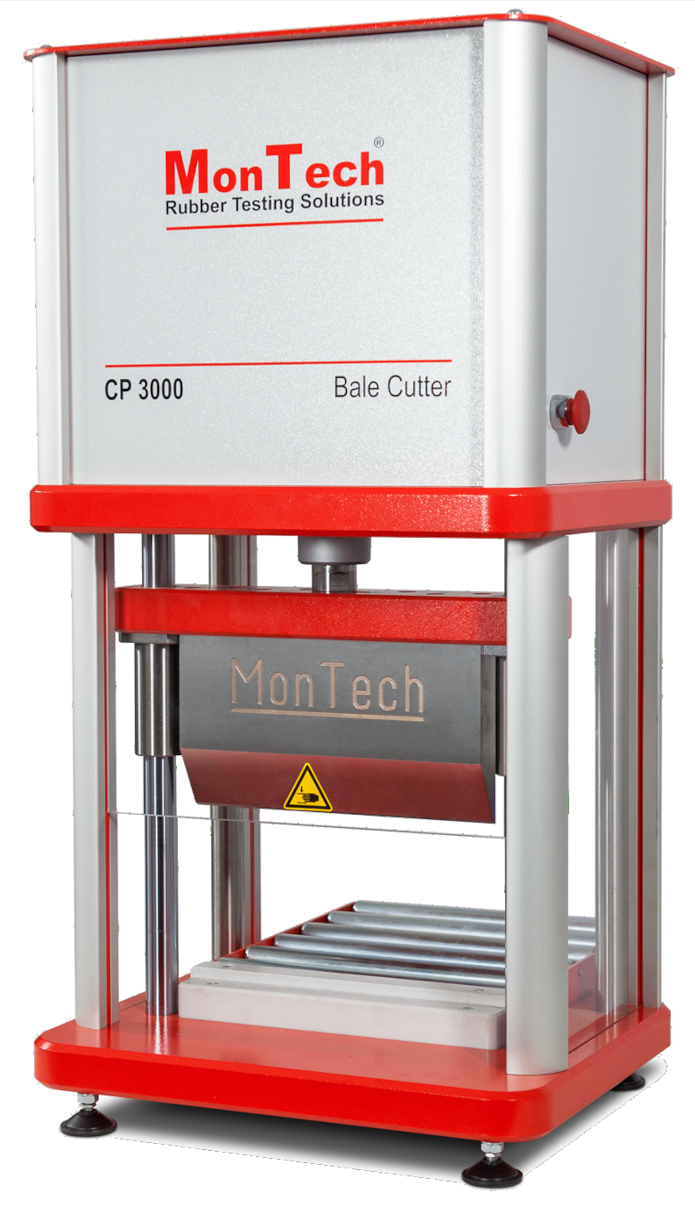

CP 3000 Compact
Rubber and Polymer Bale Cutter
The compact rubber and polymer bale cutter is the perfect solution for laboratories with confined spacing for slicing smaller bales.
The compact CP 3000 laboratory bale cutter is the most convenient table top solution to cut and slice smaller polymer bales, blocks, and rubber sheets. Fit with a two-hand safety operation system, an optional feeding tunnel and knife cover, the compact CP 3000 unit provides the highest operator convenience while fitting the highest safety standards.
CP 3000 Compact Features
- Two hand safety operation
- Tabletop model
- Hardened and precision ground cutting blade
- Precision-ground ball bearing blade guides
- Quiet pneumatic operation
- Transparent safety shields
- Optional automatic knife cover
- Optional feeding tunnel
Technical Specifications
Operation | Up to 12 cuts / minute, cutting and lifting speed adjustable |
Bale Width / | max. 11.22 in (285 mm) |
Bale Height / | max. 5.83 in (148 mm) |
Cutting Pressure | Min: 0.3 tons @ 2.0 bar |
Cutting Knive | Hardened and precision ground |
Cutting Strip | Teflon, exchangeable |
Material Supply | Roller conveyor, total length 400 mm |
Safety Equipment | Pneumatic safety 2-hand operation (anti-tiedown), transparent safety shields on all sides |
Required Supplies | Compressed air with min. 2 bars (5 bars recommended), |
Dimensions (H x W x D) | 37.0 in x 18.9 in x 22.0 in (940 mm x 480 mm x 560 mm) |
Weight | approx. 120 kg net |
