VP 3000

Small laboratory press for curing rubber test samples



Fully compliant with ISO, DIN, ASTM and GB Standards

Load Capacity: 40 kN | 4 ton
Platen Size: ⌀ 180 mm | 7 in
The VP 3000 is a single button pneumatic curing press for preparation of individual rubber samples. Capable of producing up to 40kN of compression force, this model is designed in accordance with ISO, ASTM, DIN, GB and other international standards for temperature uniformity, parallelism and safety.

Download Brochure  Request Quote

VP 3000

Small laboratory press for curing rubber test samples

VP 3000

Fully compliant with ISO, DIN, ASTM and GB Standards

Request Quote

Load Capacity: 40 kN | 4 ton
Platen Size: ⌀ 180 mm | 7 in

The VP 3000 is a single button pneumatic curing press for preparation of individual rubber samples. Capable of producing up to 40kN of compression force, this model is designed in accordance with ISO, ASTM, DIN, GB and other international standards for temperature uniformity, parallelism and safety.

Features

  • Easy to use single Start Button
  • Miniature table top foot print
  • PID-controlled heating systems
  • 5” Color touchscreen display
  • Pneumatic front shield
  • Optional molds
  • Homogenous temperature distribution

Technical Specifications

Capacity

Range: 20 - 200 kN

Press Platen Size

⌀ 180 mm

Pneumatics

4.5 bar / 65 psi

Electrical

200/220/240/260 VAC +/- 10%
50/60 Hz +/- 5 Hz

Platen Pressure

1.05 N/mm2

Max. Temperature

200 °C / 392°F

Temperature Accuracy

±1.0°C

Heating Type

Electrical

Capacity per Platen

1.6 kW

Stroke

Opening Speed: 20mm/s
Closing Speed: 30mm/s
Pressing Speed: 1.5 - 3 mm/s
Stroke Travel: 200 mm

Cylinder Stroke

100 mm

Dimensions (H x W x D)

930mm x 560mm x 480mm

Weight

105 kg

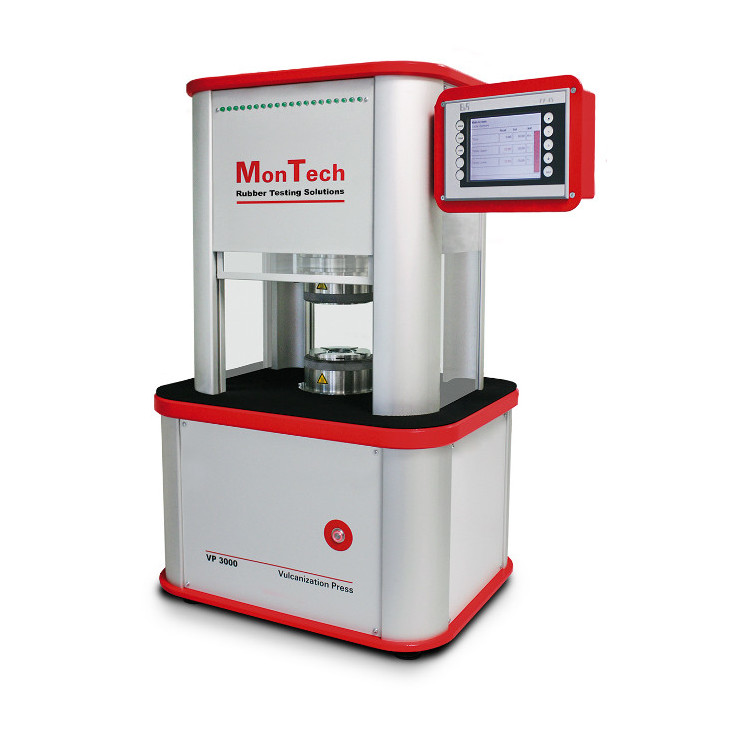

VP-3000_01.jpg VP-3000_02.jpg VP-3000_detail_02.jpg VP-3000_detail01.jpg
